1 X WeinviewHMI
|
Model |
I/O port |
Software |
Dimensions |
Panel Cutout |
|
MT8071iE |
USB2.0/Ethernet |
EBpro multiple languages |
200.3×146.3×34 |
192×138 |
|
MT8072iP/MT8071iP |
||||
|
MT6071iE |
USB2.0 Mini USB |
|||
|
MT6071iP |
USB2.0 MicroUSB |
|||
|
TK8071iP |
Ethernet |
|||
|
TK6071iP |
MicroUSB |
EBpro Chinese |
||
|
TK6071iQ |
USB2.0 |
7″ MT Series:
MT8072iP Replace MT8071iP
|
Model |
MT8071iE |
MT8071iP |
MT6071iE |
MT6071iP |
|
|
Display |
Display |
7″ TFT |
|||
|
Resolution |
800 x 480 |
||||
|
Brightness (cd/ ) |
400 |
300 |
300 |
300 |
|
|
Contrast Ratio |
800:1 |
500:1 |
500:1 |
500:1 |
|
|
Backlight Type |
LED |
||||
|
Backlight Life Time |
>30,000 hrs. |
||||
|
Colors |
16.7M |
||||
|
LCD Viewing Angle |
80/60/80/80 |
70/50/70/70 |
70/50/70/70 |
70/50/70/70 |
|
|
Touch Panel |
Type |
4-wire Resistive Type |
|||
|
Accuracy |
Active Area Length(X) 2%, |
||||
|
Memory |
Flash |
128 MB |
|||
|
RAM |
128 MB |
||||
|
Processor |
32-bit RISC 600MHz |
||||
|
I/O Port |
USB Host |
USB 2.0 x 1 |
USB 2.0 x 1 |
USB 2.0 x 1 |
USB 2.0 x 1 |
|
USB Client |
N/A |
N/A |
USB 2.0 x 1 |
USB 2.0 x 1 (Micro USB) |
|
|
Ethernet |
10/100 Base-T x 1 |
10/100 Base-T x 1 |
N/A |
N/A |
|
|
COM Port |
COM1: RS-232 |
COM1: RS-232 4W |
COM1: RS-232 |
COM1: RS-232 |
|
|
RTC |
Built-in |
||||
|
Power |
Input Power |
24 20%VDC |
10.5~28VDC |
24 20%VDC |
10.5~28VDC |
|
Power Isolation |
Built-in |
||||
|
Power Consumption |
450mA@24VDC |
1A@12VDC ; 500mA@24VDC |
350mA@24VDC |
1A@12VDC ; 500mA@24VDC |
|
|
Voltage Resistance |
500VAC (1 min.) |
||||
|
Isolation Resistance |
Exceed 50M @ 500VDC |
||||
|
Vibration Endurance |
10 to 25Hz |
||||
|
Specification |
PCB Coating |
Yes |
|||
|
Enclosure |
Plastic |
||||
|
Dimensions WxHxD |
200.3 x 146.3 x 34 mm |
||||
|
Panel Cutout |
192 x 138 mm |
||||
|
Weight |
Approx. 0.6 kg |
||||
|
Mount |
Panel mount |
||||
|
Environment |
Protection Structure |
NEMA4 / IP65 Compliant Front Panel |
|||
|
Storage Temperature |
-20 ~ 60 C (-4 ~ 140 F) |
||||
|
Operating |
0 ~ 50 C (32 ~ 122 F) |
||||
|
Relative Humidity |
10% ~ 90% (non-condensing) |
||||
|
Certificate |
CE |
CE marked |
|||
|
ATEX |
ATEX Zone 2/22 |
N/A |
N/A |
N/A |
|
|
Software |
EasyBuilder Pro |
EasyBuilder Pro |
EasyBuilder Pro |
EasyBuilder Pro |
|
7″ TK Series:
|
Model |
TK8071iP |

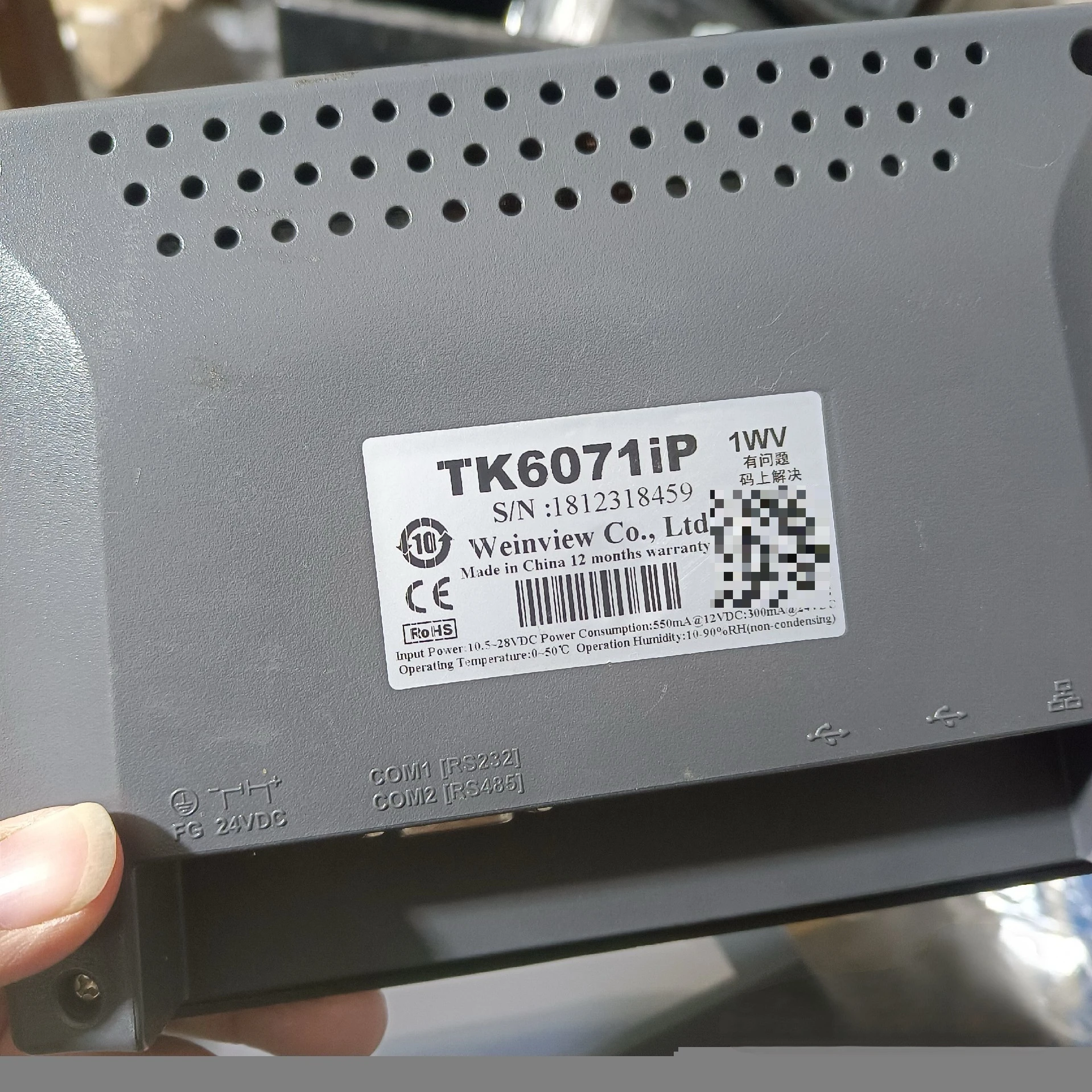

TK6071iP |
TK6071iQ |
|
|
Display |
Display |
7″ TFT |
||
|
Resolution |
800 x 480 |
|||
|
Brightness (cd/ ) |
300 |
|||
|
Contrast Ratio |
500:1 |
|||
|
Backlight Type |
LED |
|||
|
Backlight Life Time |
>30,000 hrs. |
|||
|
Colors |
16.7M |
|||
|
LCD Viewing Angle |
70/50/70/70 |
|||
|
Pixel Pitch (mm) |
0.1926(H) x 0.179(V) |
|||
|
Touch Panel |
Type |
4-wire Resistive Type |
||
|
Accuracy |
Active Area Length(X) 2%, |
|||
|
Memory |
Flash |
128 MB |
||
|
RAM |
128 MB |
|||
|
Processor |
32-bit RISC 528MHz |
|||
|
I/O Port |
USB Host |
USB 2.0 x 1 |
N/A |
USB 2.0 x 1 |
|
USB Client |
N/A |
USB 2.0 x 1 (Micro USB) |
N/A |
|
|
Ethernet |
10/100 Base-T x 1 |
N/A |
N/A |
|
|
COM Port |
COM1: RS-232 4W |
|||
|
RTC |
Built-in |
|||
|
Power |
Input Power |
10.5~28VDC |
||
|
Power Isolation |
Built-in |
|||
|
Power Consumption |
1A@12VDC ; 450mA@24VDC |
550mA@12VDC ; 300mA@24VDC |
1A@12VDC ; 450mA@24VDC |
|
|
Voltage Resistance |
500VAC (1 min.) |
|||
|
Isolation Resistance |
Exceed 50M @ 500VDC |
|||
|
Vibration Endurance |
10 to 25Hz |
|||
|
Specification |
PCB Coating |
Yes |
||
|
Enclosure |
Plastic |
|||
|
Dimensions WxHxD |
200.4 x 146.5 x 34 mm |
|||
|
Panel Cutout |
192 x 138 mm |
|||
|
Weight |
Approx. 0.52 kg |
|||
|
Mount |
Panel mount |
|||
|
Environment |
Protection Structure |
NEMA4 / IP65 Compliant Front Panel |
||
|
Storage Temperature |
-20 ~ 60 C (-4 ~ 140 F) |
|||
|
Operating |
0 ~ 50 C (32 ~ 122 F) |
|||
|
Relative Humidity |
10% ~ 90% (non-condensing) |
|||
|
Certificate |
CE |
CE marked |
||
|
ATEX |
N/A |
|||
|
Software |
EasyBuilder Pro |
EasyBuilder Pro |
EasyBuilder Pro |
|
Easy Builder Pro supports multiple languages
