Brand:KETAI
Made in China

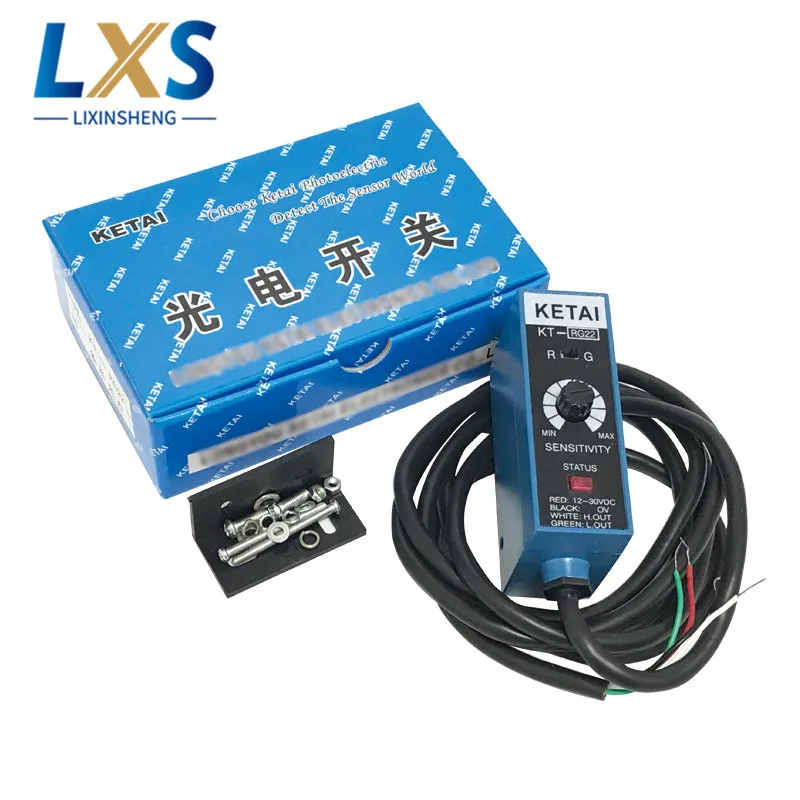

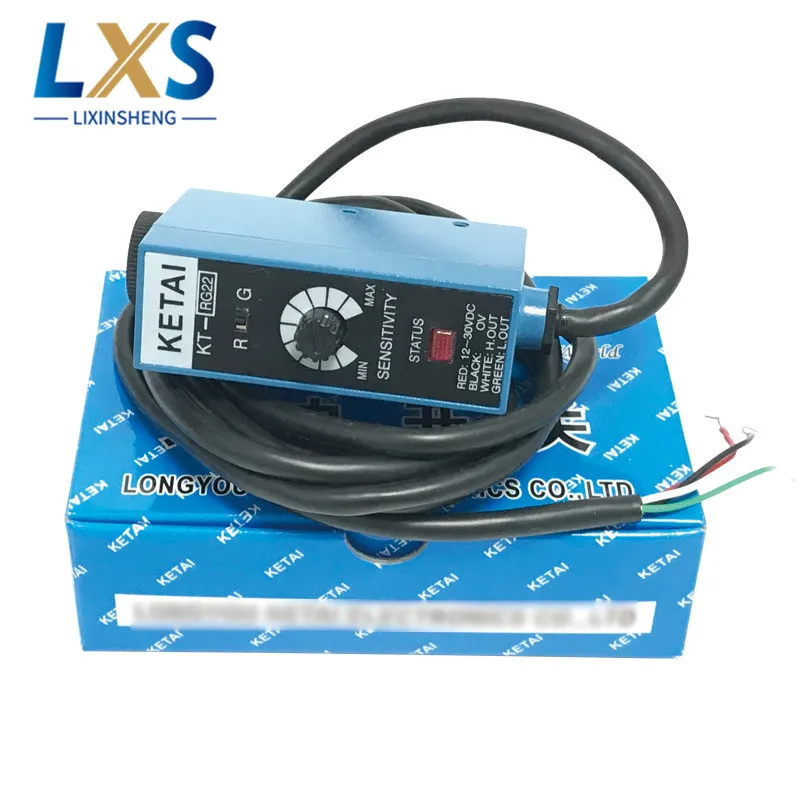

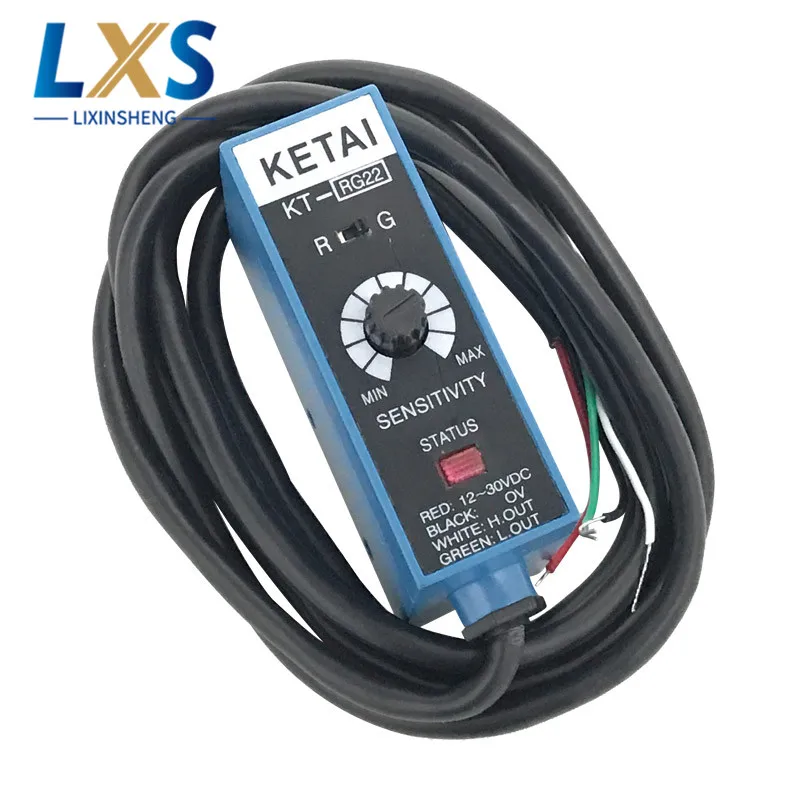

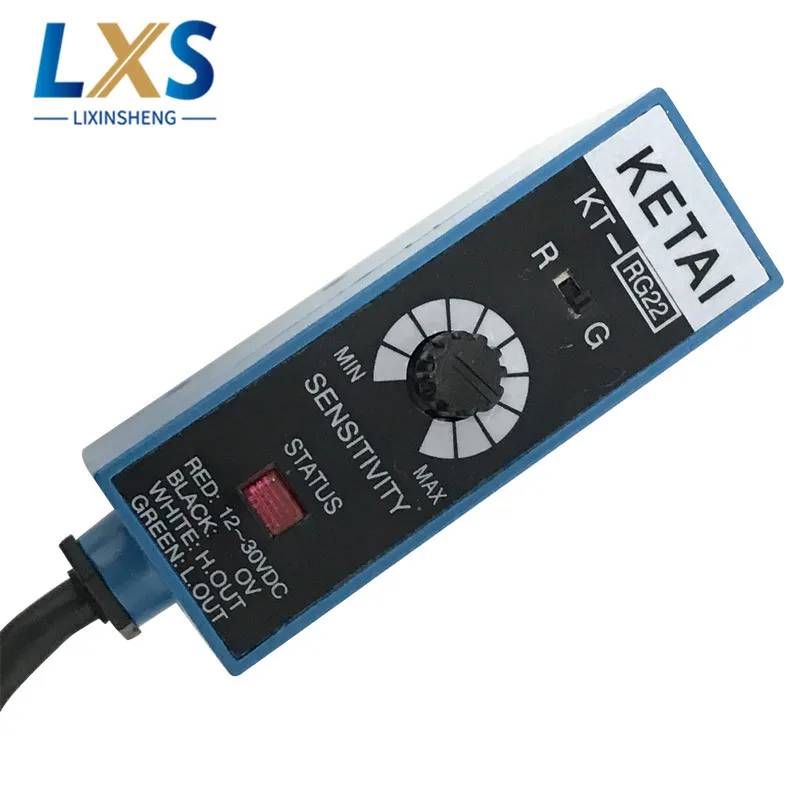

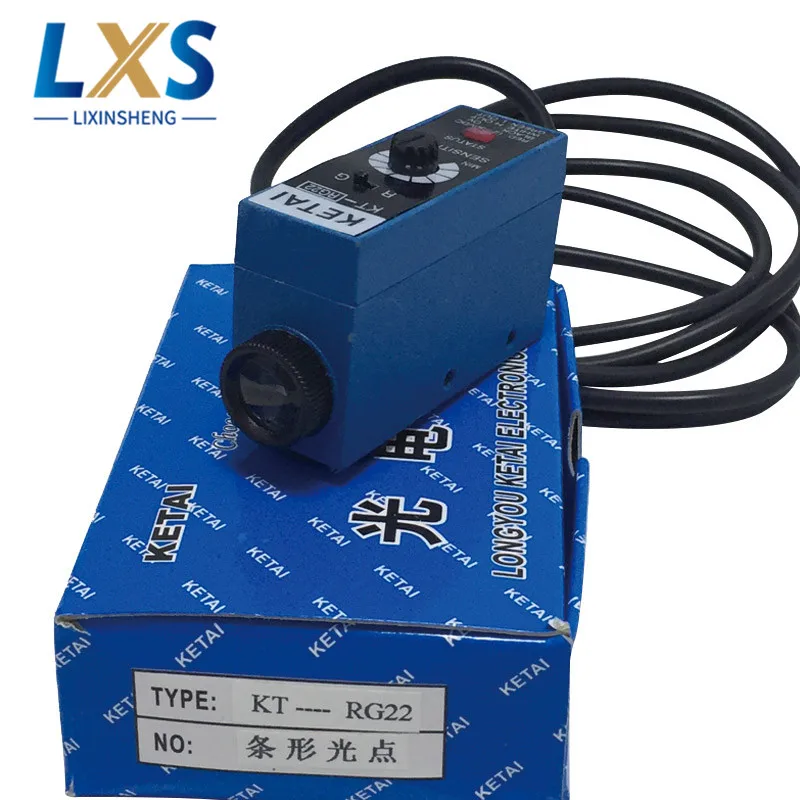

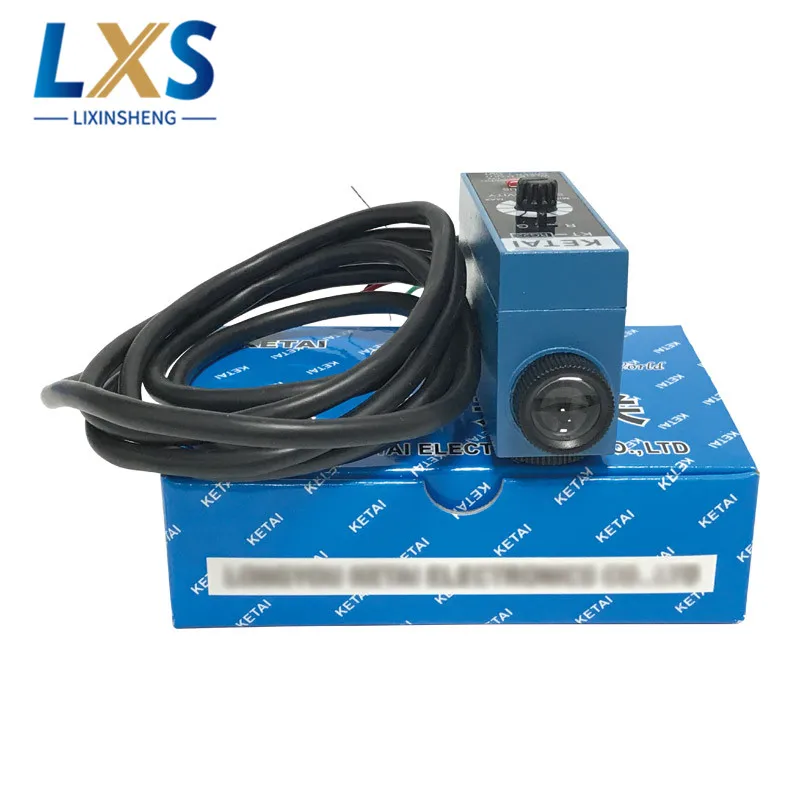

Model: KT-RG22 (bar light spot)
Detection Light Source: Red/Green Conversion
The detection spot is a 1×4 mm stripe that can track intermittent or irregular color blocks such as text, letters, and barcodes.
Technical Parameters:
Detection Method: coaxial reflection
Detection Distance: 10mm±3mm
Supply Voltage: DC10-30V±10% ripple ≤10%
Current Consumption: 45mA or less Source Chromatogram: Available in Red, Green, Blue, White
Light spot: long strip
Detection angle: the allowable deviation between the light and the surface of the measured object+-15
Response time: 1ms
Output method: bright and dark
Output indicator: red LED
Output voltage: high level Vs-(≤1.5) low level ≤1.2V
With load current: 100mA
Analog output: 0-10mA
Circuit protection device: Vs voltage has reverse polarity protection, output has short circuit protection, and at the same time has any wrong line protection
Sensitivity: adjustable single ring
Anti-ambient light: Incandescent 3000Lx Sun 10000Lx
Protection class: IP67 (dustproof and dustproof)
Operating temperature: 0 to 70°C during operation, -25 to 80°C during storage
Vibration resistance: 10~55Hz complex amplitude 1.mmXUZ three directions each 2 hours
Resistance to impact: 100M/S2 (about 10G) XYZ three directions three times
Wire: standard length 2M
Shell: Metal
