Products Description

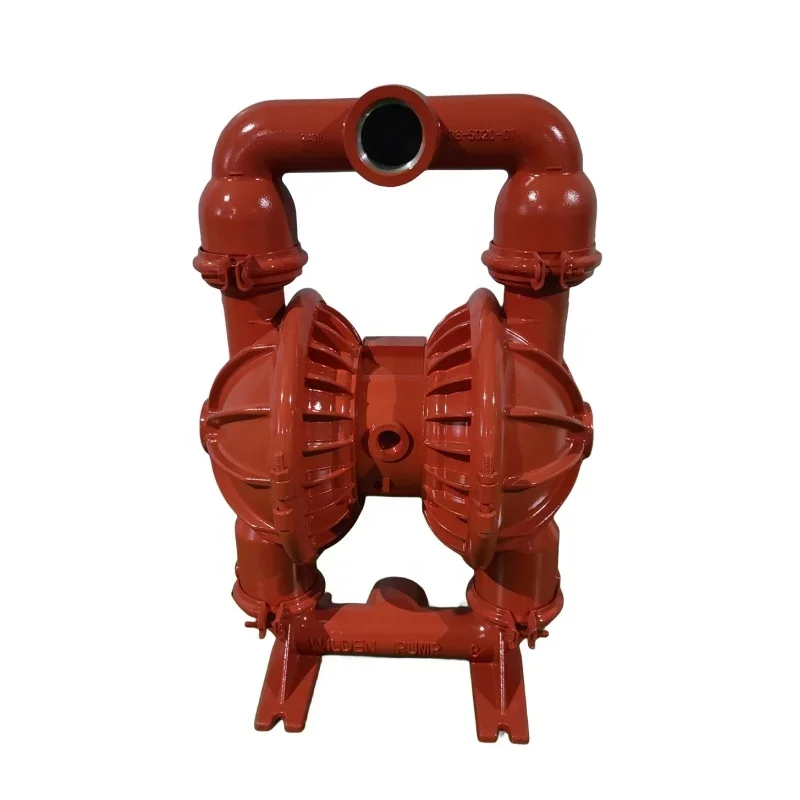

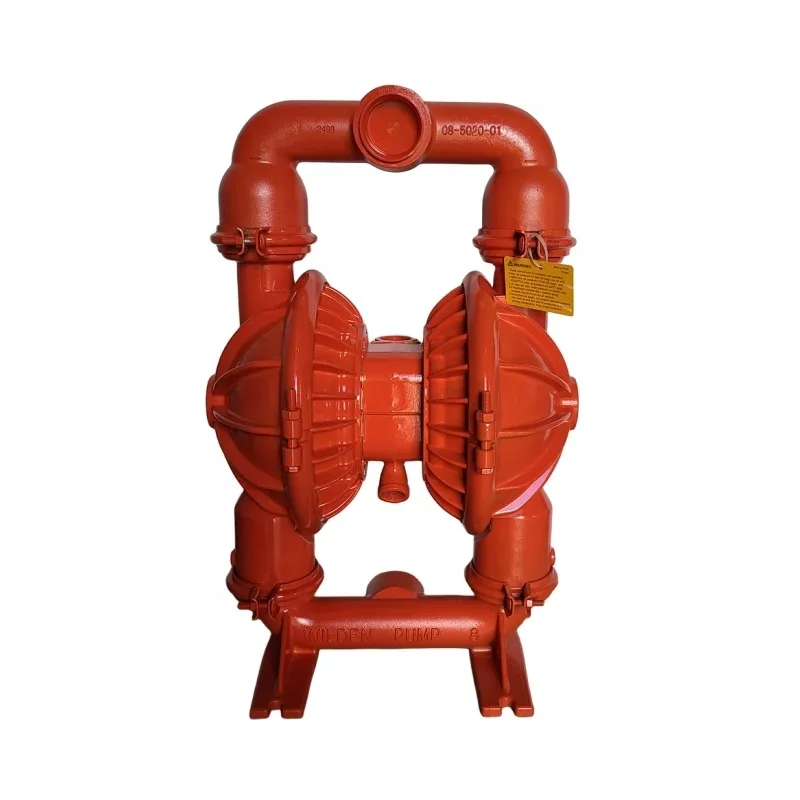

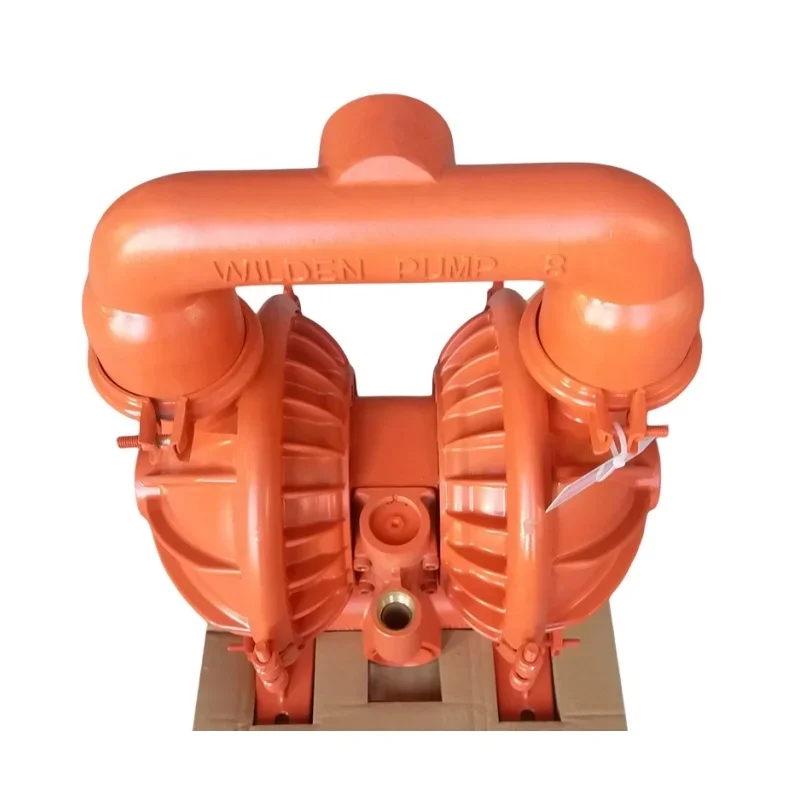

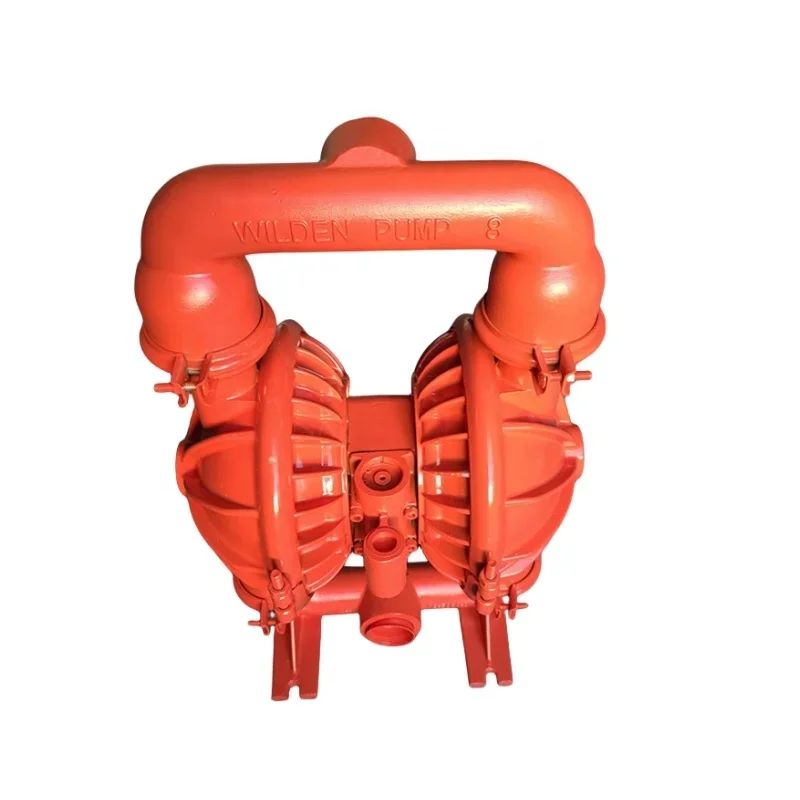

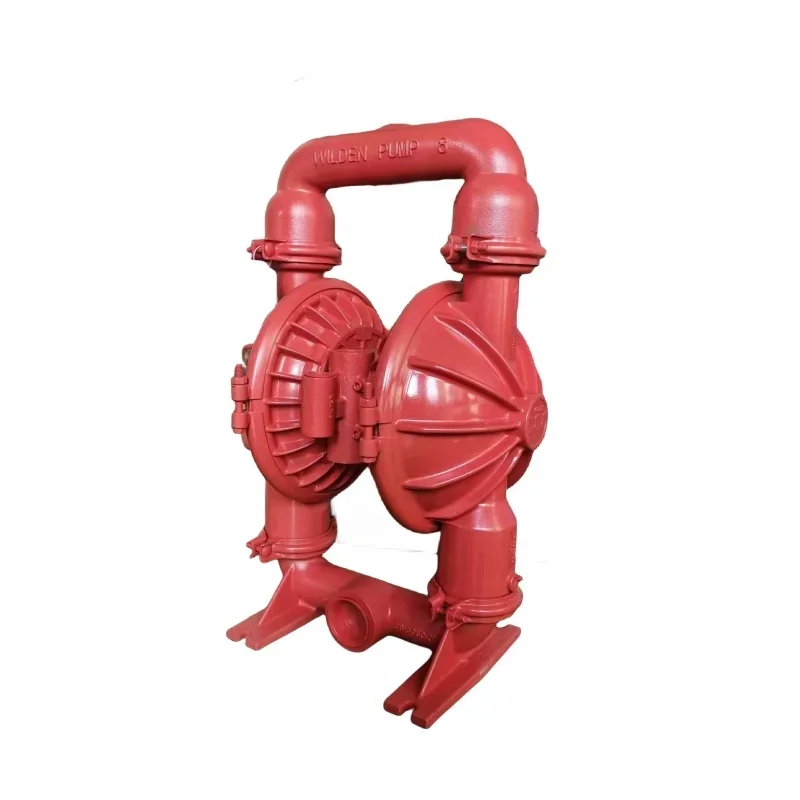

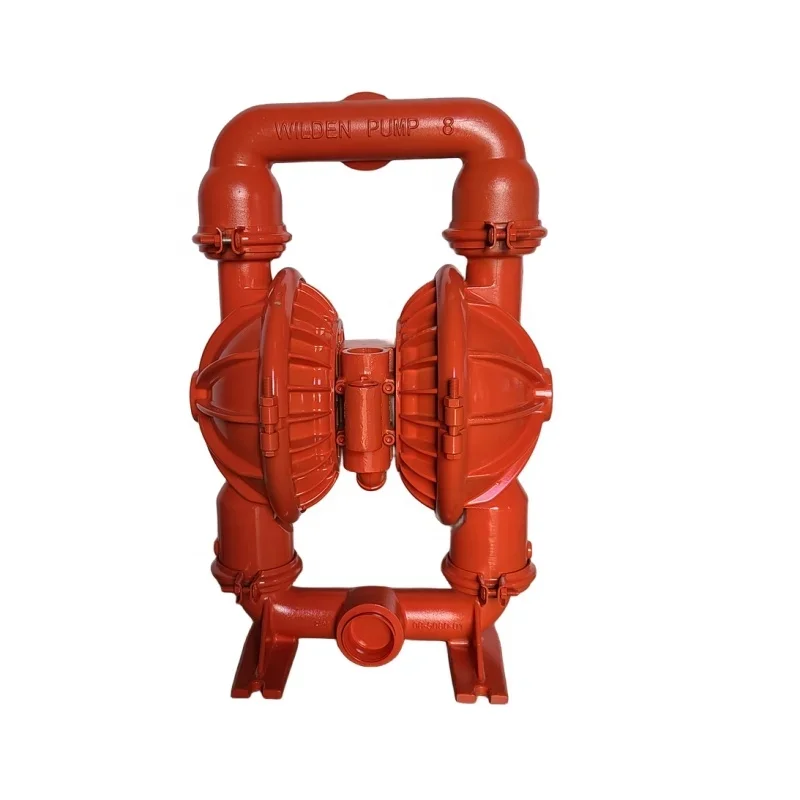

PSG Wilden 2” AODD Pneumatic Pump/ submersible pump price T8 with Buna-N diaphragm for Pumping water slurry
|
Product Name
|
Pneumatic Diaphragm Pump
|
|
Model
|
T8/AAAAB/BNS/BN/BN/0014
|
|
Max Pressure
|
8.6 bar (125 psi)
|
|
Max Solid Size
|
6.4 mm (1/4”)
|
|
Max Flow
|
Rubber – 617 lpm (163 gpm)
|
|
Max Dry Suction lift
|
6.4 m (21′)
|
|
Diaphragm
|
BUNA-N Rubber
|
|
Housing(Shell)
|
Aluminum alloy
|
NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect Featuring the energy-efficient Pro-Flo® SHIFT ADS Greater flow – more gallons pumped per SCFM Reduced air consumption and kilowatt usage Decades of proven performance Clamped connections for faster maintenance Low cost Simple installation Ease of operation and maintenance
Details Images
Characteristics, application and working principle of pneumatic diaphragm pump
The pneumatic diaphragm pump is a new type of conveying machinery, which uses compressed air as the power source, and uses the diaphragm in the cylinder body to work back and forth to transport various media.
Conveyed medium: Air-Operated Double Diaphragm
(AODD) Pumps is suitable for conveying all kinds of corrosive and granular liquids, as well as highly open, volatile, flammable and highly toxic liquids
(AODD) Pumps is suitable for conveying all kinds of corrosive and granular liquids, as well as highly open, volatile, flammable and highly toxic liquids
Pumps advantages
Wilden: Celebrating 65 Years
Wilden’s commitment to the customer is undoubtedly the reason why we are the market leaders in our industry. We listen to the comments of engineers, maintenance personnel, and end users to develop general and specialized products to meet your needs. Wilden is constantly in the pursuit of excellence, always innovating and designing new products.
Jim Wilden pioneered a revolution, inspired a generation of innovation and created an entire air pump industry. Wilden® Pump & Engineering Company was founded in 1955 on the sketches of a unique but reliable utilitarian pump: the air-operated double-diaphragm (AODD) pump. Today, corporate ownership and regional local management provide Wilden with the clarity and focus needed to produce quality products. Wilden products are engineered to meet today’s industrial and commercial demands.
Wilden’s commitment to the customer is undoubtedly the reason why we are the market leaders in our industry. We listen to the comments of engineers, maintenance personnel, and end users to develop general and specialized products to meet your needs. Wilden is constantly in the pursuit of excellence, always innovating and designing new products.
FAQ
Q1: What’s your business range?
A: We are professional in the field of fluid metering and transmission and can provide customers
with fluid transmission and metering system solutions.
with fluid transmission and metering system solutions.
Q2: What is your MOQ?
A: One unit.
Q3: What’re your payment terms?
A: We can accept pay via T/T bank charge, PayPal, Western Union, Credit Assurance. If you need other terms, we can have a discuss.
Q4: Why choose us?
1. We have more than 10 years’ experience in the transfer fluid industry. Main Products Pneumatic diaphragm pumps, Metering Pumps, Portable pumps.
2. High quality products good service and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Q5: Which brand you have?
we have WILDEN, SADNPIPER, ARO, GR HUSKY, OVELL, MARATHON, VERDERAIR, VERSA-MATIC , PROMINET, STANDARD , NIKKISO EIKO and so on.Welcome contact us for more information.Thank you
