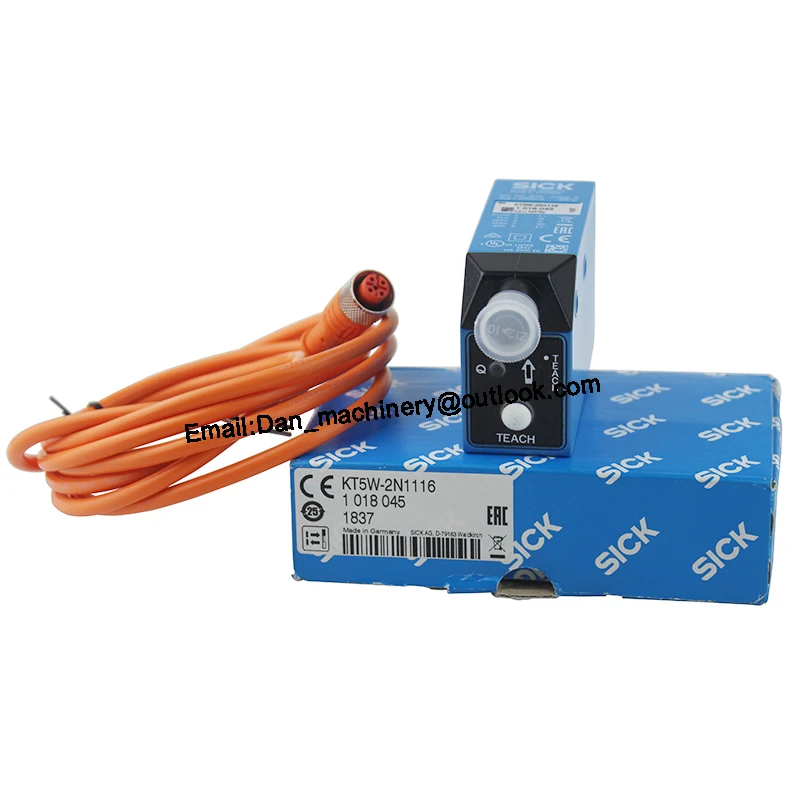

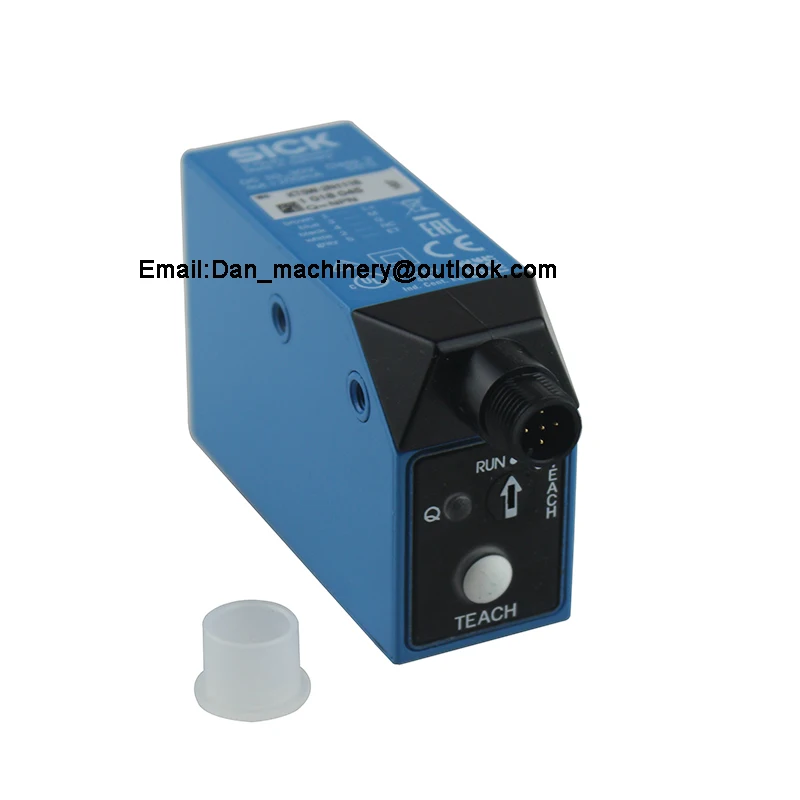

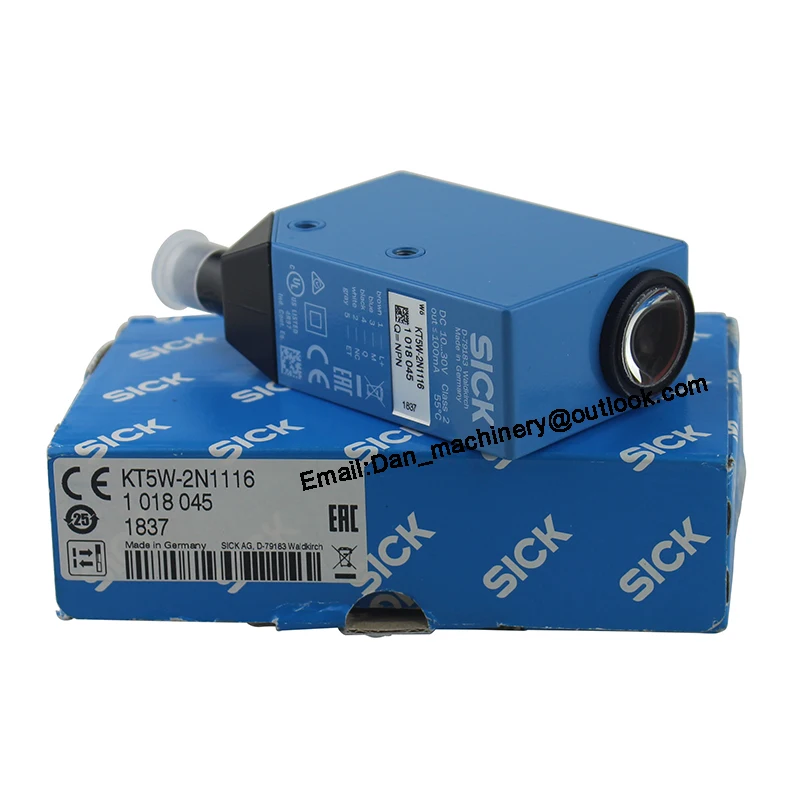

SICK KT5W-2N1116 10 mm LED Color mark Sensor, Contrast Sensor
KT5W-2N5116 color mark sensor is widely use in the Printing machine , bag making machine , slitting machine and lamination machine
FEATURES
· Sensing distance: 10 mm
· Light spot size: 1.2 mm x 4.2 mm
· Switching frequency: 10 kHz
· Type of light: RGB
· Connection type: Male connector M12, 5-pin
· Adjustment: Static 2-point teach-in
· Communication interface: –
|
Dimensions (W x H x D) |
30.4 mm x 53 mm x 80 mm |
|
Sensing distance |
10 mm |
|
Housing design (light emission) |
Rectangular |
|
Sensing distance tolerance |
± 3 mm |
|
Light source |
LED, RGB 2) |
|
Wave length |
470 nm, 525 nm, 640 nm |
|
Light emission |
Long and short side of housing, exchangeable |
|
Light spot size |
1.2mm x 4.2 mm |
|
Light spot direction |
Vertical 3) |
|
Adjustment |
Teach-in button |
|
Teach-in mode |
Static 2-point teach-in |
|
1) From front edge of lens. |
|
|
2) Average service life: 100,000 h at TU = +25 °C. |
|
|
3) In relation to long side of housing. |
|
MECHANICS/ELECTRONICS
|
Supply voltage |
10 V DC … 30 V DC 1) |
|
Ripple |
≤ 5 Vpp 2) |
|
Power consumption |
<800 mA 3) |
|
Switching frequency |
10 kHz 4) |
|
Response time |
50 µs |
|
Output type |
NPN |
|
Switching output (voltage) |
NPN: HIGH = approx. VS / LOW ≤ 2 V |
|
Output current Imax. |
100 mA |
|
Retention time (ET) |
25 ms, non-volatile memory |
|
Connection type |
Male connector M12, 4-pin |
|
Protection class |
II 5) |
|
Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
|
Enclosure rating |
IP 67 |
|
Weight |
400 g |
|
Housing material |
Zinc diecast |
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) With light/dark ratio 1:1.
5) Signal transit time with resistive load.
6) Short-circuit protected.
7) Reference voltage DC 50 V.
AMBIENT DATA
|
Ambient operating temperature |
–10 °C … +55 °C |
|
Ambient storage temperature |
–25 °C … +75 °C |
|
Shock load |
According to IEC 60068 |
